CCS Inc.

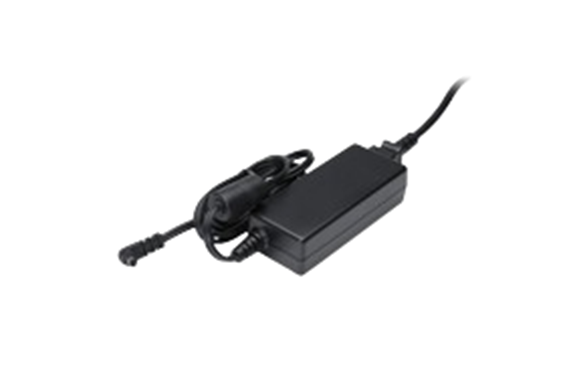

CCS ADP2460-PFB-JTLV6 Adapter [For The CSR Series]
Manufacturer: CCS Inc.
Model: ADP2460-PFB-JTLV6
Features
- Dedicated Power Supply Adapter for PFB2 and PFB3.
- It operates on a 100 to 240 VAC input.
- *This product conforms to U.S. DoE CEC Level VI (External Power Supply Efficiency Standards).
Specifications
| Dimensions | W 121 mm x D 33 mm x H 52 mm (Protrusions, such as connectors, knobs, and feet are not included.) |
|---|---|
| Input power | 100 to 240 VAC, 130 VA, 50/60 Hz |
| Output (rating) | 22.8 to 25.4 VDC, 2.7 A (U.S. DoE CEC Level VI External Power Supply Efficiency Standards compliant) |
| Conformed standards | RoHS, UL, cUL, PSE, CE, UKCA, GS, CCC, RCM, FCC, BSMI |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 472 g max. |
| Accessories | 1.8 m long 3-prong AC power cord with ground terminal, Instruction Guide |
| Notes | This Power Supply Adapter is used with the PFB2 and PFB3 Series and operates on a 100 to 240 VAC input. U.S. DoE CEC Level VI External Power Supply Efficiency Standards compliant |
Dimensions (mm)
