CCS Inc.

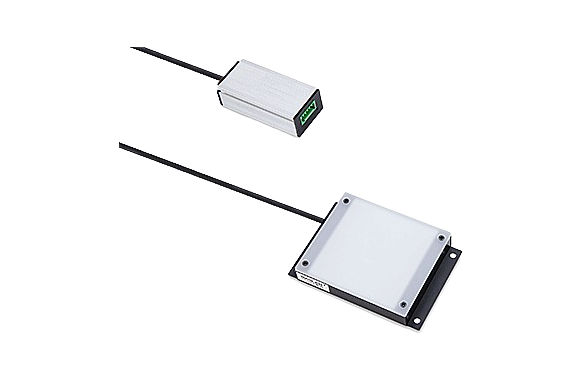

CCS BCBL-60X60W / BCBL-60X60R / BCBL-60X60B Basler Camera Light Series
Manufacturer: CCS Inc.
Model: BCBL-60X60W / BCBL-60X60R / BCBL-60X60B
Features
- BCBL-60X60x (x=W, R, B) plug-and-play bar light connects to Basler ace U and ace L camera models.
- Control lighting mode, lighting time, and dimming of lighting through the camera software.
- The LED emission colors are red, blue and white, and the emission surface size is 60 x 60 mm.
Specifications
| LED color | Red , Blue , White |
|---|---|
| Peak wavelength | Red 635 nm, Blue 470 nm, White 6000 K |
| Dimensions | W 63 mm x D 90 mm x H 15 mm |
| Input voltage | 24 VDC ( ± 10% ) |
| Power consumption | Red 6.1 W, Blue 6.1 W, White 6.1 W |
| Conformed standards | RoHS, CE, UKCA |
| Operating temperature and humidity | Temperature: 0 to 40°C (Light intensity may vary due to the change in ambient temperature) Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation) (Should not be frozen, condensed or exposed to the rapid change in temperature) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 130 g |
| Accessories | User Manual |

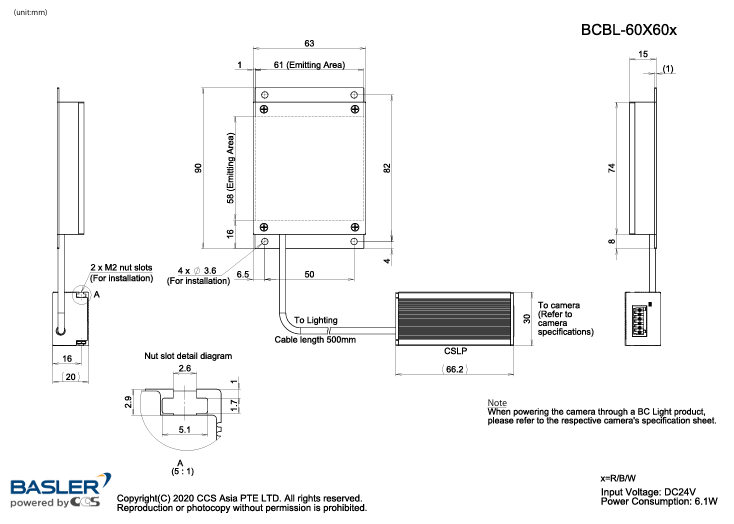

Dimensions (mm)
