CCS Inc.
CCS BCR-70W / BCR-70R / BCR-70B Basler Camera Light Series
Manufacturer: CCS Inc.
Model: BCR-70W / BCR-70R / BCR-70B
Features
- BCR-70x (x=W, R, B) plug-and-play bar light connects to Basler ace U and ace L camera models.
- Control lighting mode, lighting time, and dimming of lighting through the camera software.
- The LED emission colors are red, blue and white, and the emission surface size is 70 mm.
- Diffuser DF-BCR-70 and polarizing plate PL-BCR-70 are available as options.
Specifications
| LED color | Red , Blue , White |
|---|---|
| Peak wavelength | Red 630 nm, Blue 470 nm, White 5500 K |
| Dimensions | Outer diameter 70 mm x Inner diameter 32 mm x Height 20 mm |
| Input voltage | 24 VDC ( ± 10% ) |
| Power consumption | Red 5.8 W, Blue 5.8 W, White 7.8 W |
| Conformed standards | RoHS, CE, UKCA |
| Operating temperature and humidity | Temperature: 0 to 40°C (Light intensity may vary due to the change in ambient temperature) Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation) (Should not be frozen, condensed or exposed to the rapid change in temperature) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 160 g |
| Accessories | User Manual |

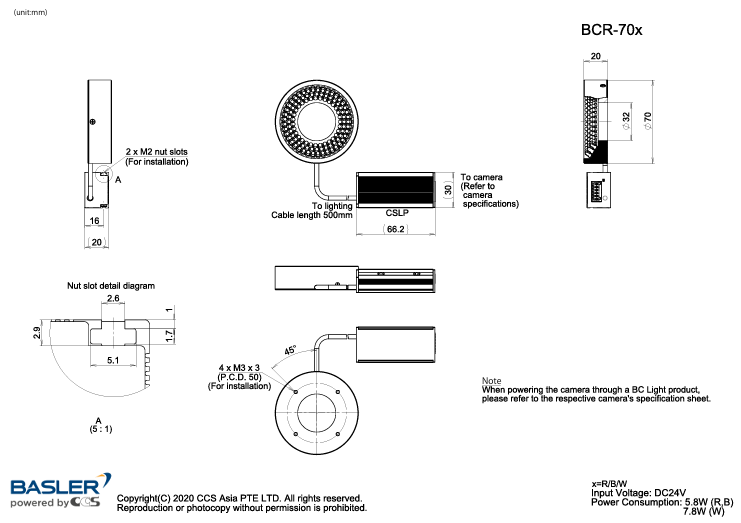

Dimensions (mm)
