CCS Inc.

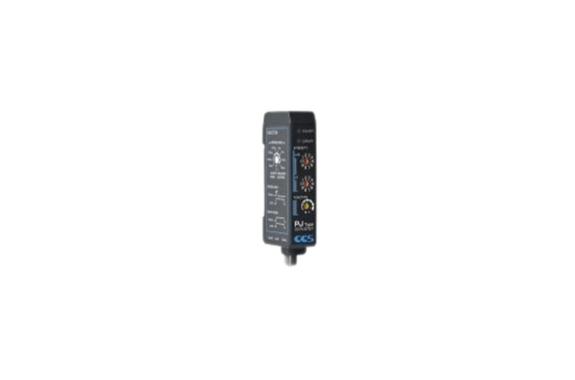

CCS CC-PJ-0707 Control Units [for the HLV Series]
Manufacturer: CCS Inc.
Model: CC-PJ-0707
Features
- This Controller is dedicated to the HLV3/HLV2-series Spotlights.
- It operates on a 24 VDC input and measures 16 x 32.5 x 75 mm (width x depth x height).
- LED Light Cable length: 1000 mm
- 24 VDC Input Cable length: 2000mm
Specifications
| Dimensions | W 16 mm x D 32.5 mm x H 75 mm |
|---|---|
| Applicable Light Unit (output ratings) | HLV Series |
| Number of channels | 1 |
| Drive method | Constant-current system |
| Intensity control method | Variable-current control, Lighting time control |
| Power consumption | 7W (3W Spotlight, at maximum light intensity) |
| Output voltage | 7 VDC max. |
| Output current | 700 mA |
| Case material | ABS |
| Over current protection | Yes |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (No condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (No condensation) |
| Cooling method | Natural air cooling |
| Weight | 100 g max. |
| Accessories | Instruction Guide, Flat-blade screwdriver |
Dimensions (mm)
