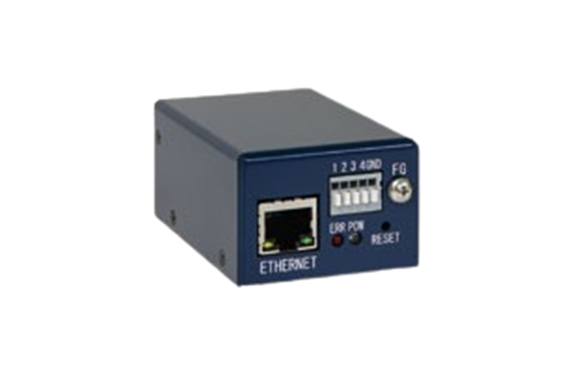

CCS CN-1024-4-EPOE PoE Enabled Controller
Manufacturer: CCS Inc.
Model: CN-1024-4-EPOE
Features
- PoE Enabled LED Light Controller.
- Reduce the number of cables in your system by supplying power and transmitting data using a single LAN cable.
- 4 channels available.
- Supports 2 lighting modes: continuous and strobe.
Specifications
| Dimensions | W 50 mm x D 70 mm x H 34.8 mm (not including protrusions such as connectors and knobs) |
|---|---|
| Applicable Light Unit (output ratings) | 24 VDC 10 W (4 channels total) |
| Number of channels | 4 channels |
| Drive method | Constant-voltage system |
| Lighting method | Strobe / continuous lighting |
| Strobe time settings | Strobe mode: 8 μs to 100 ms (Must be a multiple of 8 μs) |
| Intensity control method | Strobe time control, PWM control |
| Light intensity setting | 256 levels (including 0: light OFF) |
| PWM frequency | 125 kHz |
| Power consumption | 13.9 W typ. |
| Lighting delay settings | Strobe mode: 0 to 100 ms (Must be a multiple of 10 μs) |
| External control protocol | TCP/IP, UDP/IP |
| Output connector | SMP-08V-BC |
| Trigger | Input: Screw-less terminal block, 5-pin, Solid wires or stranded wires AWG 28 to 22 Input voltage (ratings): 24 VDC |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) (indoors only) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 140 g max. |
| Material, coating, and surface finish | Aluminum alloy, thickness: 1.5 mm, navy-blue, leather tone |
| Accessories | Instruction Guide, 4-branch cable |
| Program | [Sample Program] Sample programs are available. See the Software Tools tab. |

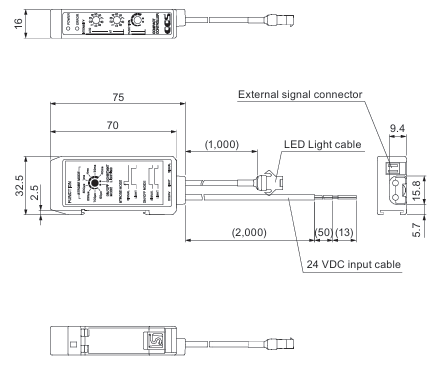

Dimensions (mm)
