CCS Inc.

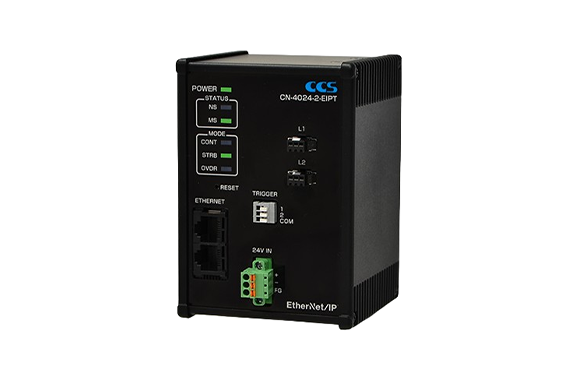

CCS CN-4024-2-EIPT Controller with EtherNet/IP Interface
Manufacturer: CCS Inc.
Model: CN-4024-2-EIPT
Features
- Light intensity and other settings can be controlled with explicit messages via EtherNet/IP® communications and with I/O commands via TCP/IP communications.
- “Ethernet/IP” is a trademark of ODVA, Inc.
Specifications
| Dimensions | W 84 mm x D 82.6 mm x H 119.6 mm |
|---|---|
| Applicable Light Unit (output ratings) | O/D Mode 48 VDC 5 A max./connector, Total for 2 channels: 7 A max.Strobe Mode, Continuous Mode 24 VDC 40 W max./connector, Total for 2 channels: 40 W max. |
| Number of channels | 2 |
| Drive method | Constant lighting |
| Lighting method | Continuous / strobe lighting |
| Intensity control method | Strobe time control, PWM control |
| PWM frequency | 125 kHz |
| Input voltage | 24 VDC |
| Power consumption | Average: 45 W Peak: 71.3 W |
| Case material | Aluminum and resin |
| External control protocol | EtherNet/IP, TCP/IP |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 500 g max. |
| Accessories | User Manual |
| Program | [Sample Program] Sample programs are available. See the Software Tools tab. |

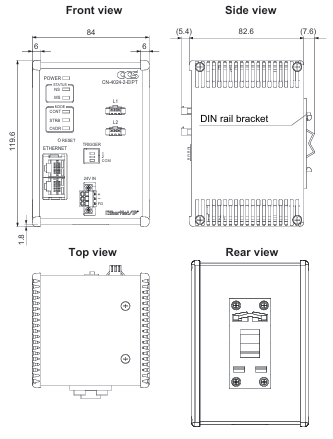

Dimensions (mm)
