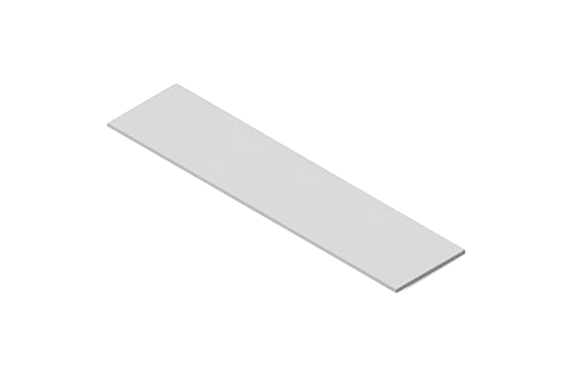

CCS DF-HLDL3-750 / DF-HLDL3-750-HU Diffusion Plates [For HLDL3 Series]
Manufacturer: CCS Inc.
Model: DF-HLDL3-750 / DF-HLDL3-750-HU
Features
- Diffuser for HLDL3-750X28 bar lights.*
- Prevents glare when imaging shiny workpieces.
- Two types of diffusers are available. For higher uniformity, use the DF-HLDL3-750-HU.
*Light units are fitted with diffusers that have low uniformity and high transmittance when shipped. - For HLDL3-750X28SW-DF-W, however, the optional diffuser DF-HLDL3-750 is installed.
Specifications
| Dimensions | W 754 mm x D 37 mm x H 2 mm |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 70 g max. |
| Material | Resin |
| Caution | *Diffuser has a front and backside. Install the plate with the glossy, smooth side facing the LEDs. *Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: HLDL3-750X28(SW/BL/RD/IR)-DF-(N/M/W) |
Dimensions (mm)
