CCS Inc.

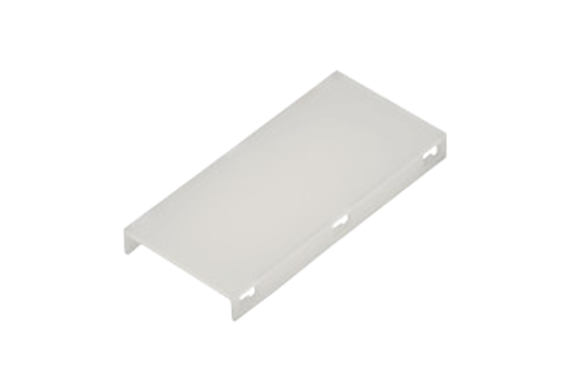

CCS DF-LDL-130X15 Diffusion Plates [For Bar Lights]
Manufacturer: CCS Inc.
Model: DF-LDL-130X15
Features
- For the LDL-130X15-series Bar Lights.
- Bar type diffusion plate.
- Use the diffusion plate to prevent glare, which is a problem when making images of glossy workpieces.
Specifications
| Dimensions | D 14.7 mm X W 131.8 mm X H 2 mm |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 10 g |
| Accessories | Operation Guide |
| Caution | The shape or color of the diffusion plate may change due to heat in the application environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDL-130X15 |
Dimensions (mm)
