CCS Inc.

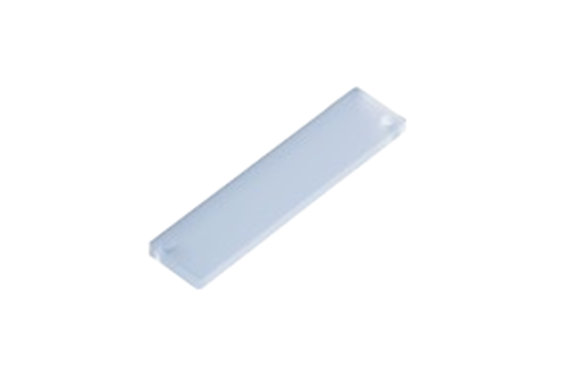

CCS DF-LDL2-33X8 Diffusion Plates [For Bar Lights]
Manufacturer: CCS Inc.
Model: DF-LDL2-33X8
Features
- For the LDL2-33X8-series Bar Lights.
- Bar type diffusion plate.
- Use the diffusion plate to prevent glare, which is a problem when making images of glossy workpieces.
*The diffusion plate has a matte side and a smooth side. Attach the plate with the smooth side facing the LED.
Specifications
| Dimensions | W 44 mm x D 10.4 mm x H 2 mm |
|---|---|
| Heat resistant temperature | 60℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 2 g max. |
| Accessories | Operation Guide, M2x6 low-head screws x 3 |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDL2-33×8 |
Dimensions (mm)
