CCS Inc.

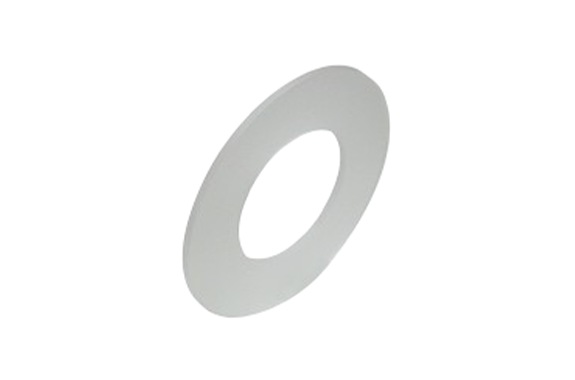

CCS DF-LDR-PF-75 Diffusion Plates [For LDR-PF Series]
Manufacturer: CCS Inc.
Model: DF-LDR-PF-75
Features
- For the LDR-PF-75-series High Power Strobe Ring Lights.
- Ring type diffusion plate.
- Use the diffusion plate to prevent glare, which is a problem when making images of glossy workpieces.
*The diffusion plate has a matte side and a smooth side. Attach the plate with the smooth side facing the LED.
Specifications
| Dimensions | Outer diameter 75 mm, Inner diameter 35 mm, Height 2 mm |
|---|---|
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDR-PF-75 An adapter is needed for attachment to the Light Unit. |
Dimensions (mm)
