CCS Inc.
CCS EXCB2-9F-9F-3-CR External Control Cables
Manufacturer: CCS Inc.
Model: EXCB2-9F-9F-3-CR
Features
- CCS AItec External Control Cables EXCB2-15M-3.
- D-sub connector.
- 3-m cable compatible with the serial communications (RS-232C).
Specifications
| Cable length | 3 m |
|---|---|
| Connectors (Control Unit side) | D-sub connector (9-pin, plug) |
| External control connector | D-sub connector (9-pin, plug) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |

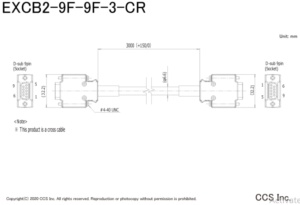

Dimensions (mm)
