CCS Inc.
CCS EXCB2-M10-3 External Control Cables
Manufacturer: CCS Inc.
Model: EXCB2-M10-3
Features
- Cable through which external trigger signals are input by parallel bit method.

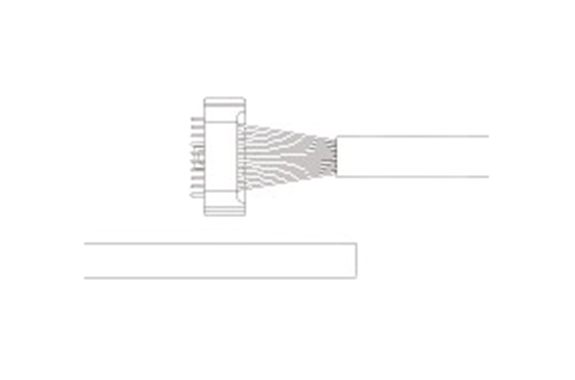

- 3-m length cable with 10-pin MIL connector.
Specifications
| Cable length | 3 m |
|---|---|
| Connectors (Control Unit side) | MIL connector (10-pin, socket), cut off on one end |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 115 g max. |

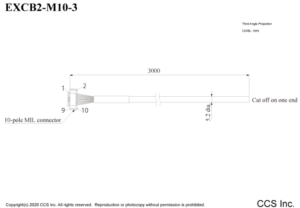

Dimensions (mm)
