CCS Inc.

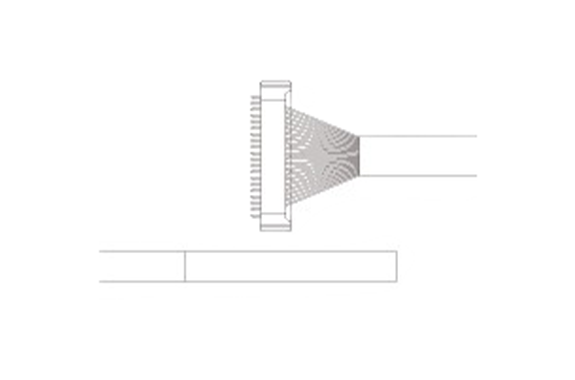

CCS EXCB2-M20-3 External Control Cables
Manufacturer: CCS Inc.
Model: EXCB2-M20-3
Features
- Used for performing external control via parallel communication.
- 3-m length cable with 20-pin MIL connector.
Specifications
| Cable length | 3 m |
|---|---|
| Connectors (Control Unit side) | MIL connector (20-pin, socket), cut off on one end |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 185 g max. |

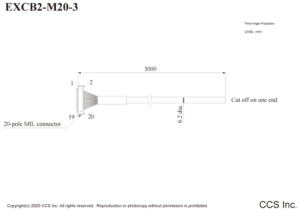

Dimensions (mm)
