CCS Inc.

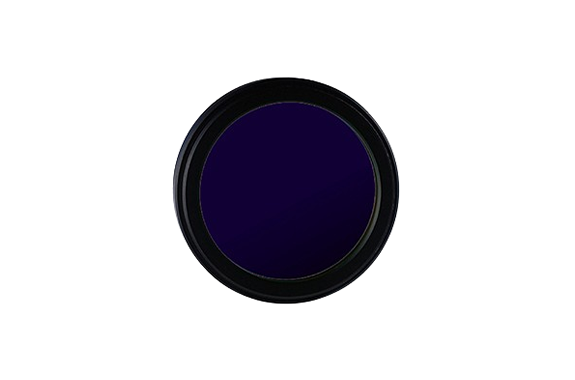

CCS F-BP365-105 Filters
Manufacturer: CCS Inc.
Model: F-BP365-105
Features
- Band-pass filter installed in front of a lens, Using with ultraviored LED light units.
- Transmits the wavelengths between 335 and 400 nm and prevents disturbance from ambient light.
- Compatible with a lens filter thread diameter of M105 x P1.0 mm.
Specifications
| Dimensions | Outer diameter 107.8 mm, Inner diameter 100 mm, Height 8.5 mm |
|---|---|
| Screw hole diam. x Screw pitch | M105 x P1.0 |
| Useful range | 335 to 400 nm |
| Full width at half max | 80 nm |
| Wavelength tolerance | +/-10 nm |
| Peak transmission | >85 % |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Lens material | Glass |
Dimensions (mm)
