CCS Inc.

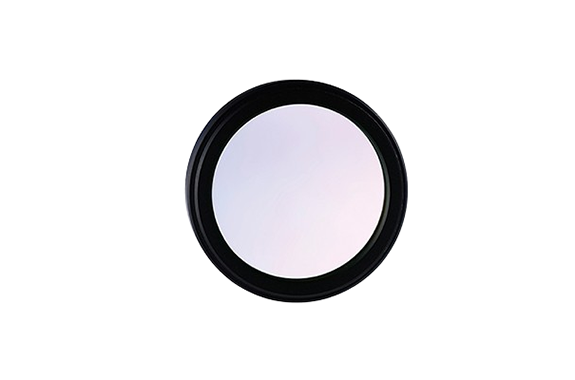

CCS F-LP340-95 Filters
Manufacturer: CCS Inc.
Model: F-LP340-95
Features
- Protective filter for a camera lens.
- Anti-reflection coating glass is used.
- Transmits the light of 350 to 800 nm.
- Compatible with a lens filter thread diameter of M95 x P1.0 mm.
Specifications
| Dimensions | Outer diameter 98.2 mm, Inner diameter 89.9 mm, Height 10 mm |
|---|---|
| Screw hole diam. x Screw pitch | M95 x P1.0 |
| Useful range | 350 to 800 nm |
| Wavelength tolerance | +/-10 nm |
| Peak transmission | 0.98 |
| Cut-on wavelength (50% transmission) | 340 nm |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Lens material | Glass |
Dimensions (mm)
