CCS Inc.
CCS FCB-3-PF-EL9 Extension Cable [For PF Series]
Manufacturer: CCS Inc.
Model: FCB-3-PF-EL9
Features
- This extension cable for High Power Strobe LED Light Units (HPD-PF-150/200, HPR-PF-150/200 and LFV-PF-70/100) has a length of 3 m.
- EL connector, 9-pin.
Specifications
| Cable length | 3 m |
|---|---|
| Minimum bending radius (reference value) | 44.4 mm |
| Connectors (Control Unit side) | EL connector (9-pin, plug) |
| Connectors (Light Unit side) | EL connector (9-pin, socket) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20% to 85%RH (No condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20% to 85%RH (No condensation) |
| Weight | 270 g max. |
| Caution | The light intensity might be unstable if you join cables. |

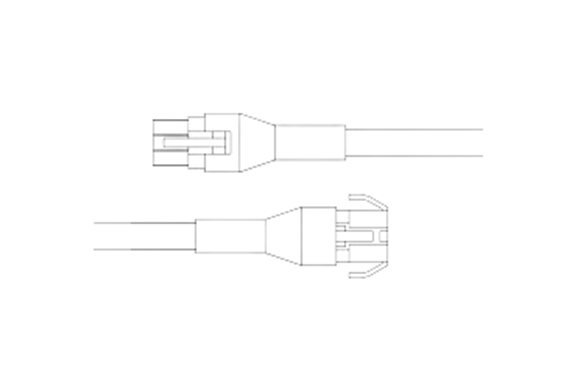

Dimensions (mm)
