CCS FCB-F-2 4-Way Cables
Manufacturer: CCS Inc.
Model: FCB-F-2
Features

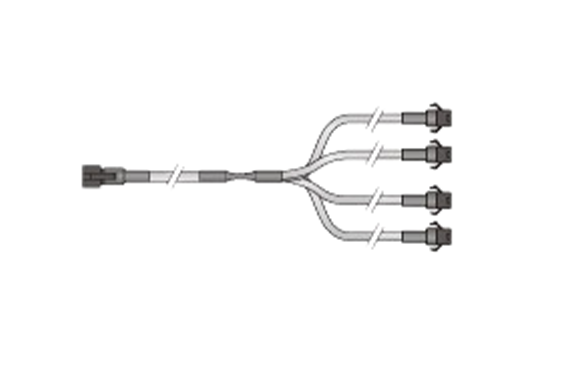

- 4-branch cable used to connect four 24 V input LED Light Units and a 24 V output Control Unit.
- 2-m length cable with 3-pin SM connectors.
- One end of the cable branches into four 20 cm cables.
- This cable is used to control multiple Light Units from one Control Unit (output connector).
Specifications
| Cable length | 2 m |
|---|---|
| Minimum bending radius (reference value) | 27.6 mm |
| Connectors (Control Unit side) | SM connector (3-pin, plug) |
| Connectors (Light Unit side) | SM connector (3-pin, socket) x 4 |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 80 g max. |
| Caution | The light intensity might be unstable if you join cables. |
Dimensions (mm)
