CCS Inc.
CCS FCB-W-3 Straight Cables
Manufacturer: CCS Inc.
Model: FCB-W-3
Features

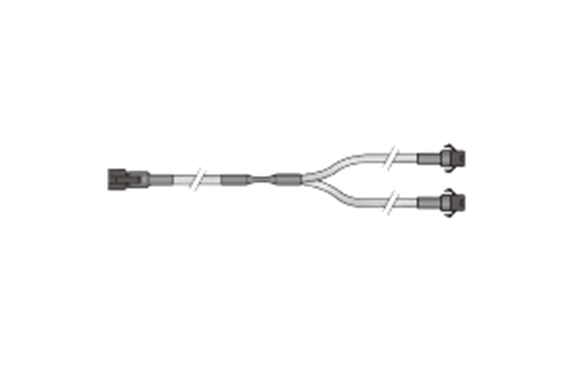

- 2-branch cable used to connect two 24 V input LED Light Units and a 24 V output Control Unit.
- 3-m length cable with 3-pin SM connectors.
- One end of the cable branches into two 20 cm cables.
- This cable is used to control multiple Light Units from one Control Unit (output connector).
Specifications
| Cable length | 3 m |
|---|---|
| Minimum bending radius (reference value) | 27.6 mm |
| Connectors (Control Unit side) | SM connector (3-pin, plug) |
| Connectors (Light Unit side) | SM connector, 3-pin (socket) x 2 |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 105 g max. |
| Caution | The light intensity might be unstable if you join cables. |
Dimensions (mm)
