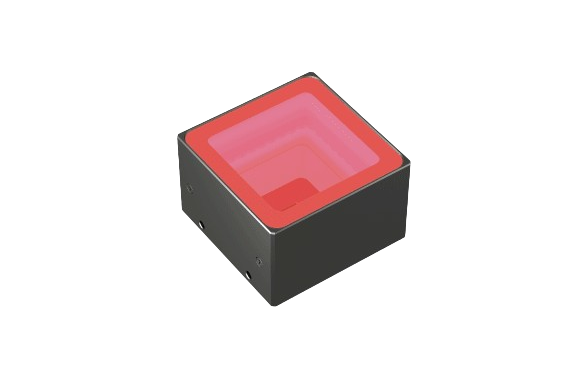

CCS FPQ-PF-48RD High Power Strobe
Manufacturer: CCS Inc.
Model: FPQ-PF-48RD
Features
- This low-angle square light emits red light and measures 48 x 48 x 30 mm (width x depth x height).
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 631 nm typ. |
| Dimensions | W 48 mm x D 48 mm x H 30 mm |
| Peak current | 14.0 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-), 4: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | ELP-04NV |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 % to 85 %RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 90 g |
| Accessories | User Manual |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
Dimensions (mm)
