CCS Inc.

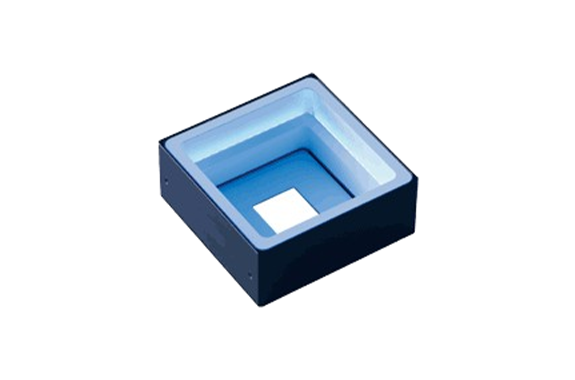

CCS FPQ3-75BL Low-Angle Square
Manufacturer: CCS Inc.
Model: FPQ3-75BL
Feature
- High-Output, Square, Low-Angle Lights.
- This Light Unit emits blue light and measures 75 x 75 x 30 mm (width x depth x height).
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 465 nm typ. |
| Dimensions | W 75 mm x D 75 mm x H 30 mm |
| Input voltage | 24VDC |
| Power consumption | 16 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, EN62471 (low risk) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 155 g max. |
| Accessories | User Manual |
Dimensions (mm)
