CCS Inc.

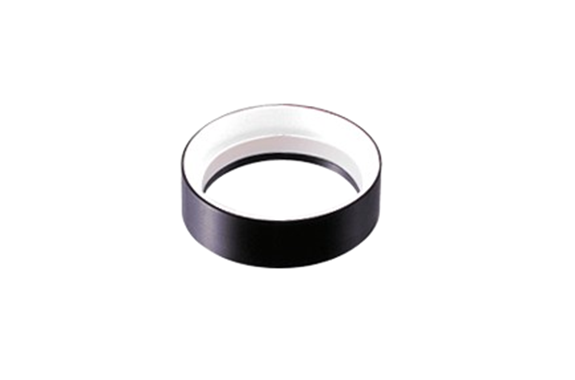

CCS FPR-136SW2 Low-Angle Ring
Manufacturer: CCS Inc.
Model: FPR-136SW2
Features
- This Light Unit emits white light and has an outer diameter of 136 mm, an inner diameter of 109 mm, a height of 40 mm, and a light-emitting surface diameter of 126 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,500 K typ. |
| Dimensions | Outer diameter 136 mm, Inner diameter 109 mm, Height 40 mm |
| Input voltage | 24VDC |
| Power consumption | 12W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Acrylic resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 280 g max. |
| Accessories | Handling Precautions |
Dimensions (mm)
