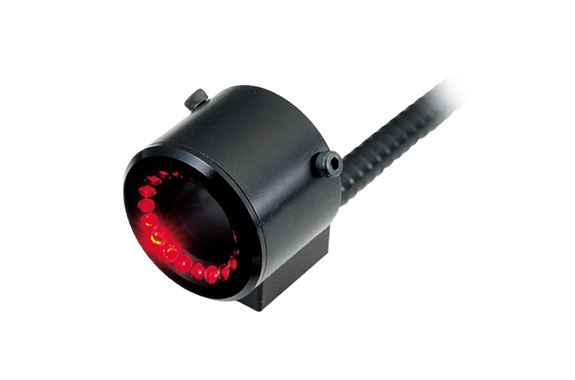

CCS HFR-25-10 Fiber Head
Manufacturer: CCS Inc.
Model: HFR-25-10
Features
- This ring-type Light Guide has a tip outer diameter of 25 mm and a tip inner diameter of 13 mm.
Specifications
| LED color | Depends on the light source sections |
|---|---|
| Dimensions | Tip outer diameter 25 mm, Tip inner diameter 13 mm |
| Case material | Aluminum alloy |
| Minimum bending radius (reference value) | 30 mm |
| Strand diameter | 500 μm |
| Transmission wavelength | 400 to 700 nm |
| Thermal resistant temperature at the tip | 70℃ |
| Numerical aperture (NA) | 0.5 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 70%RH (No condensation) |
| Storage temperature and humidity | Temperature: -10 to 60°C, Humidity: 20 to 70%RH (No condensation) |
| Weight | 60 g max. |
| Fiber material | Plastic |
| Bundle sheathing | SUS |
| Accessories | Attached adaptor (AD-HF), Operation Guide |
Dimensions (mm)
