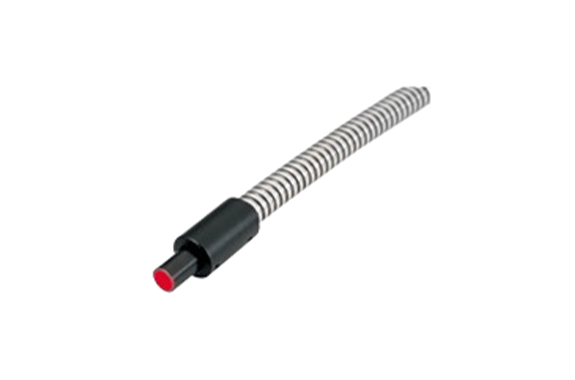

CCS HFS-14-500 Fiber Head
Manufacturer: CCS Inc.
Model: HFS-14-500
Features
- This straight-type Fiber Head has an outer diameter of 14 mm, a tip diameter of 8 mm, an incident bundle diameter of 6 mm, an emitting bundle diameter of 6 mm, and a total length of 574 mm.
Specifications
| LED color | Depends on the light source sections |
|---|---|
| Dimensions | Outer diameter 14 mm, Tip diameter 8 mm, Total length 574 mm |
| Case material | Aluminum alloy |
| Minimum bending radius (reference value) | 50 mm |
| Strand diameter | 50 μm |
| Fiber arrangement | Random |
| Transmission wavelength | 300 to 1,300 nm |
| Thermal resistant temperature at the tip | 200℃ |
| Numerical aperture (NA) | 0.56 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 70%RH (No condensation) |
| Storage temperature and humidity | Temperature: -10 to 60°C, Humidity: 20 to 70%RH (No condensation) |
| Weight | 115 g max. |
| Fiber material | Multicomponent glass |
| Bundle sheathing | SUS |
| Accessories | Attached adaptor (AD-HF), Operation Guide |
Dimensions (mm)
