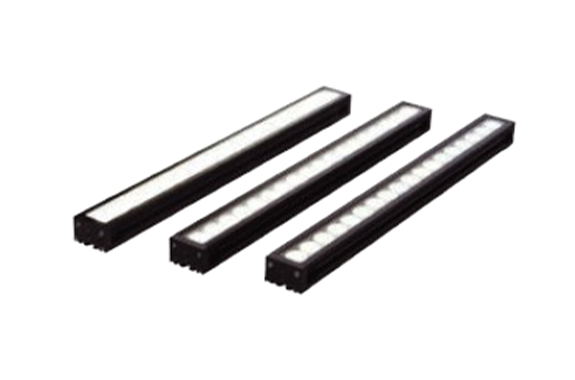

CCS HLDL3-300X28SW-DF-N / HLDL3-300X28SW-DF-M / HLDL3-300X28SW-DF-W Bar (Area)
Manufacturer: CCS Inc.
Model: HLDL3-300X28SW-DF-N / HLDL3-300X28SW-DF-M / HLDL3-300X28SW-DF-W
Features
- Bar type white LED light for long distance illumination.
- Three types of light directivity depending on the application conditions:
- Narrow type (HLDL3-300X28SW-DF-N)
- Medium type (HLDL3-300X28SW-DF-M)
- Wide type (HLDL3-300X28SW-DF-W)
- Measures W 320 mm x D 44 mm x H 30 mm, the light-emitting surface measures 300 x 28 mm.
Specifications
| LED color | White |
|---|---|
| Peak wavelength | 5700 K |
| Dimensions | W 320 mm x D 44 mm x H 30 mm |
| Input voltage | 24 VDC |
| Power consumption | 30 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS IEC 62471 HLDL3-300X28SW-DF-N: Mod risk HLDL3-300X28SW-DF-M: Low risk HLDL3-300X28SW-DF-W: Low risk |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | HLDL3-300X28SW-DF-N: 600 g max. HLDL3-300X28SW-DF-M: 600 g max. HLDL3-300X28SW-DF-W: 620 g max. |
| Accessories | User Manual |
| Caution | Combination example of branch cable and power supply FCB-W series: PD3-10024 type *Rated capacity 60W or less per connector |
| Notes | *The light unit is shipped with a low-uniformity, high-transmittance diffusion plate mounted. For HLDL3-300X28SW-DF-W, however, the optional diffuser DF-HLDL3-300 is installed. *Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
Dimensions (mm)
