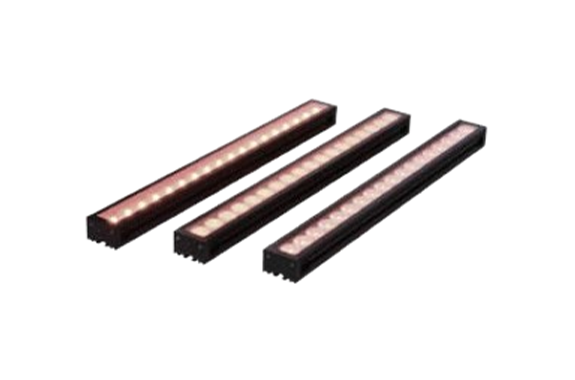

CCS HLDL3-600X28IR-DF-N / HLDL3-600X28IR-DF-M / HLDL3-600X28IR-DF-W Bar (Area)
Manufacturer: CCS Inc.
Model: HLDL3-600X28IR-DF-N / HLDL3-600X28IR-DF-M / HLDL3-600X28IR-DF-W
Features
- Bar type infrared LED light for long distance illumination.
- Three types of light directivity depending on the application conditions:
・Narrow type (HLDL3-600X28IR-DF-N)
・Medium type (HLDL3-600X28IR-DF-M)
・Wide type (HLDL3-600X28IR-DF-W)
Measures W 620 mm x D 44 mm x H 30 mm, the light-emitting surface measures 600 x 28 mm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 860 nm typ. |
| Dimensions | W 620 mm x D 44 mm x H 30 mm |
| Input voltage | 24 VDC |
| Power consumption | 59 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS IEC 62471 HLDL3-600X28IR-DF-N: Mod risk HLDL3-600X28IR-DF-M: Low risk HLDL3-600X28IR-DF-W: Exempt |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | HLDL3-600X28IR-DF-N: 1200 g max. HLDL3-600X28IR-DF-M: 1200 g max. HLDL3-600X28IR-DF-W: 1240 g max. |
| Accessories | User Manual |
| Caution | Combination example of branch cable and power supply FCB-W series: PD3-10024 type |
| Notes | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
