CCS HLDR-IP67-100VL3-385 / HLDR-IP67-100VL3-395 / HLDR-IP67-100VL3-405 UV Lights [Ultraviolet Lighting] / Violet Light
Manufacturer: CCS Inc.
Model: HLDR-IP67-100VL3-385 / HLDR-IP67-100VL3-395 / HLDR-IP67-100VL3-405
Features

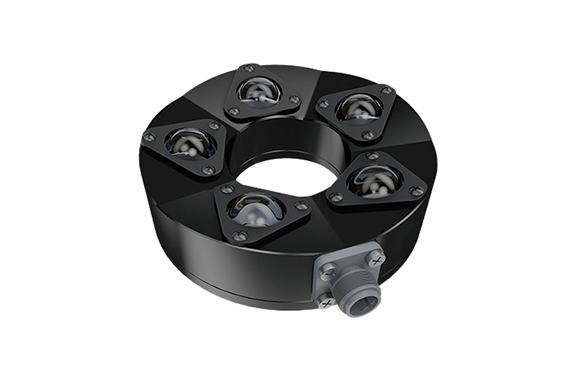

- Waterproof ring type violet LED light for convergent illumination.
- Available wavelengths: 385nm (HLDR-IP67-100VL3-385), 395nm (HLDR-IP67-100VL3-395), and 405nm (HLDR-IP67-100VL3-405)
- IP67 compliance. Outer diameter of 100 mm, inner diameter of 43 mm, and height of 33.5 mm.
Specifications
| LED color | Violet |
|---|---|
| Peak wavelength | 385 nm typ, 395 nm typ, 405 nm typ |
| Dimensions | Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm |
| Input voltage | 24 VDC |
| Power consumption | 18 W max. |
| Polarity & signal | 1: (24+), 2: NC, 3: GND(-), 4: NC |
| Case material | Body: aluminum alloy (black anodized) Screws: SUS Washers: SUS, elastomer (TPE) Connectors: PA resin Lens: silicone |
| Input connector | XS2M-D423 (Manufactured by OMRON) |
| Conformed standards | CE, UKCA, RoHS IEC 62471 HLDR-IP67-100VL3-385: High risk HLDR-IP67-100VL3-395: High risk HLDR-IP67-100VL3-405: Mod risk |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 420 g max. |
| Accessories | User Manual |
| Caution | * After cleaning manufacturing lines, be sure to wipe away any moisture remaining on the lens. Imaging can be affected by moisture on the lens. * Use water to wash away any cleaning agent adhered to this product. * Use water to wash away any oils or chemicals adhered to this product. * The Control Unit connectors (SM connectors) on dedicated cables are not waterproof. |
| Notes | IP67 is the protection classification of an electric device against intrusion of foreign objects. -The first digit, 6, indicates the following protection level. Dust protected: Totally protected against dust. -The second digit, 7, indicates the following protection level. Immersion protected: Protected against short periods of immersion in water under defined conditions of pressure and time. If the height of the device is less than 850 mm, immersion at a depth of 1 m is allowed for a duration of 30 minutes. |

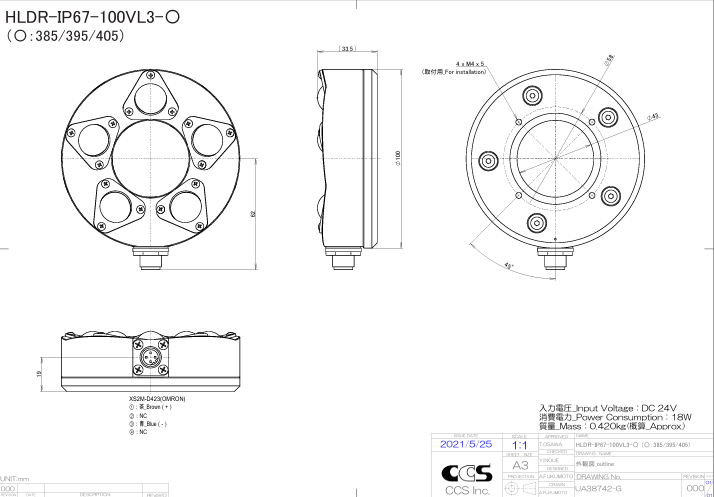

Dimensions (mm)
