CCS HLDR3-100RD-DF-N / HLDR3-100RD-DF-M / HLDR3-100RD-DF-W Ring
Manufacturer: CCS Inc.
Model: HLDR3-100RD-DF-N / HLDR3-100RD-DF-M / HLDR3-100RD-DF-W
Features

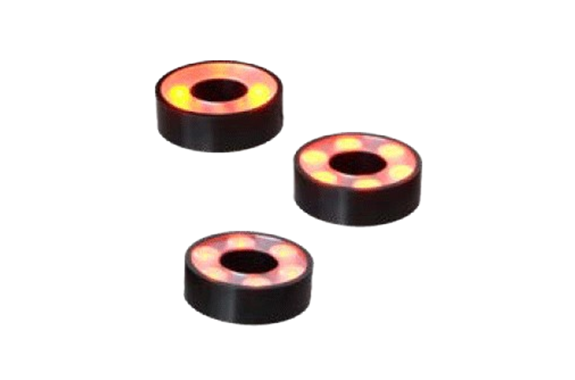

Ring type red LED lights for long distance illumination.
Three types of light directivity depending on the application conditions:
・Narrow type (HLDR3-100RD-DF-N)
・Medium type (HLDR3-100RD-DF-M)
・Wide type (HLDR3-100RD-DF-W)
Outer diameter φ100mm, inner diameter φ44mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 625 nm typ. |
| Dimensions | Outer diameter 100 mm, Inner diameter 44 mm, Height 31 mm |
| Input voltage | 24 VDC |
| Power consumption | 15 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS IEC 62471 HLDR3-100RD-DF-N: Low risk HLDR3-100RD-DF-M: Low risk HLDR3-100RD-DF-W: Exempt |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | HLDR3-100RD-DF-N: 340 g max. HLDR3-100RD-DF-M: 340 g max. HLDR3-100RD-DF-W: 310 g max. |
| Accessories | User Manual |
| Notes | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
