CCS Inc.
CCS HLV3-14BL-HU Spot
Manufacturer: CCS Inc.
Model: HLV3-14BL-HU
Features

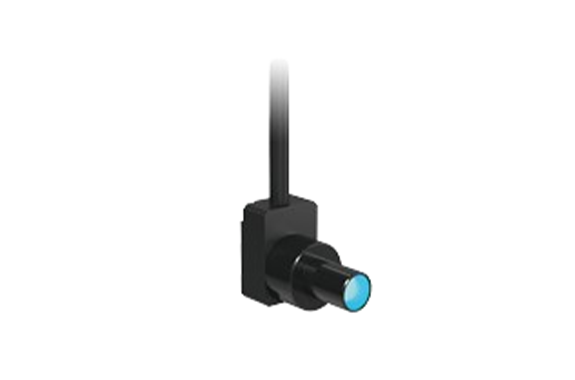

- This Light Unit emits blue light and measures 14 x 28 x 20 mm (width x depth x height), and has a tip diameter of 8 mm. The light-emitting surface diameter measures 7 mm.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 465 nm typ. |
| Dimensions | 14 x 28 x 20 (W x D x H), Tip diameter 8 mm |
| Power consumption | 0.9 W max. |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 275 mA |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 18 g max. |
| Accessories | User Manual |
Dimensions (mm)
