CCS HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C Spot
Manufacturer: CCS Inc.
Model: HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C
Features

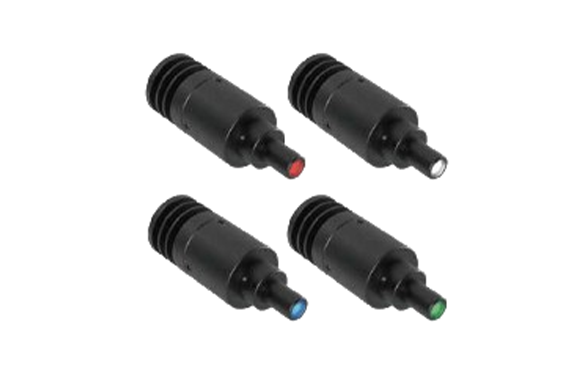

- HLV3 Series Cylindrical Type High Output Models (HLV3-22RD-4C, HLV3-22SW-4C, HLV3-22BL-4C, HLV3-22GR-4C)
- This Light Unit emits LED light and has an outer diameter of 22 mm, a tip diameter of 8 mm, a light-emitting surface diameter of 6 mm, and a total length of 61 mm.
Specifications
| LED color | Red, White, Blue, Green |
|---|---|
| Peak wavelength | Red: 630nm typ, White: 5600K typ, Blue: 465nm typ, Green: 520nm typ |
| Dimensions | Outer diameter 22 mm, Tip diameter 8 mm, Total length 61 mm |
| Power consumption | Red: 3.0 W, White: 3.5 W, Blue: 3.8 W, Green: 4.0 W max. |
| Polarity & signal | 1: Signal, 2: (+), 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 1000mA |
| Conformed standards | CE, UKCA, RoHS, IEC 62471(Red: Exempt, White: Mod risk, Blue: Mod risk, Green: Low risk) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 39 g max. |
| Accessories | User Manual |

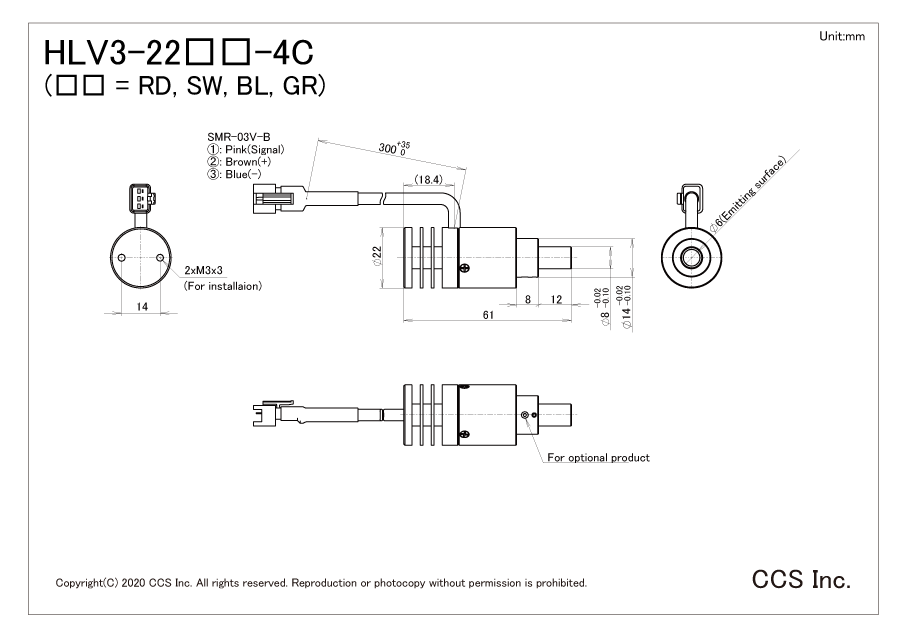

Dimensions (mm)
