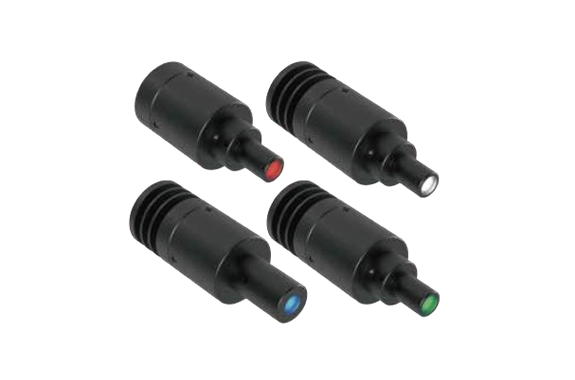

CCS HLV3 Series Cylindrical Type Spot
Manufacturer: CCS Inc.
Model: HLV3 Series
Features
- Ideal for replacing the equivalent HLV2 model
- Optimized for high-resolution telecentric lenses
- Delivers up to 2.5 times higher power than HLV2*
- Features high-performing parallel and condenser lenses for greater versatility
Specifications
| Type | Comparison of brightness with conventional HLV2*1 | Comparison of brightness within HLV3*2 | Recommended magnification for telecentric lenses | ||||||
|---|---|---|---|---|---|---|---|---|---|
| RD (red) | SW (white) | BL (blue) | GR (green) | RD (red) | SW (white) | BL (blue) | GR (green) | ||
| HLV3-22-1C | 1.6 x | 1.8 x | 1.4 x | 1.4 x | 1.0 x | 1.0 x | 1.0 x | 1.0 x | 1.0 < |
| HLV3-22-2C | 1.6 x | 1.9 x | 1.5 x | 1.5 x | 1.7 x | 1.6 x | 1.6 x | 1.6 x | 1.0 < |
| HLV3-22-2C-1220 | 1.6 x | 1.9 x | 1.5 x | 1.5 x | 1.7 x | 1.6 x | 1.6 x | 1.6 x | 1.0 < |
| HLV3-22-4C | 2.1 x | 2.5 x | 1.9 x | 1.9 x | 2.4 x | 2.2 x | 2.1 x | 2.0 x | 1.0 < |
*1 Comparison between the following units in the same colors: HLV3-22-1C and HLV2-22, HLV3-22-2C/-2C-1220/-4C and HLV2-22-3W.
*2 Comparison of brightness within HLV3 is based on HLV3-22-1C emission colors.
