CCS Inc.

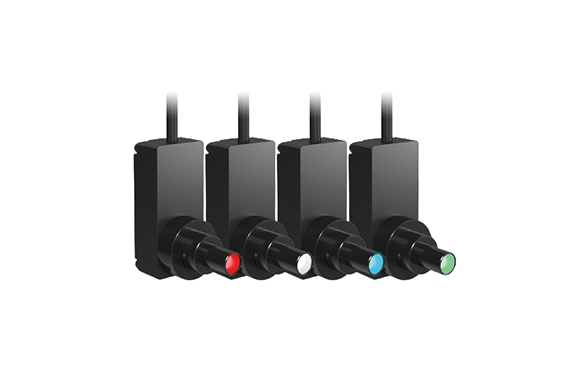

CCS HLV3 Series Spot
Manufacturer: CCS Inc.
Model: HLV3 Series
Specifications
| Model | Description | Input current (max.) | Brightness (index) | |||
|---|---|---|---|---|---|---|
| RD (red) | SW (white) | BL (blue) | GR (green) | |||
| HLV3-22-4S | High output model | 1,000 mA | 1.6x | 1.9x | 2.0x | 1.6x |
| HLV3-22-4M | High uniformity model | 1,000 mA | 1.0x | 1.3x | 1.2x | 1.0x |
| HLV3-22-2 | Standard model | 700 mA | 1.1x | 1.5x | 1.5x | 1.2x |
| HLV3-22-1 | Standard model | 385 mA | 0.6x | 0.9x | 0.9x | 0.8x |
| HLV3-14 | Compact model with condensed light | 275 mA | 1.0x | 0.8x | 1.3x | 1.1x |
| HLV3-14-HU | Compact model with diffused light | 275 mA | < 0.1x | 0.1x | < 0.1x | 0.1x |
| HLV2-22-3W | Brightest model in HLV2 series (Reference data) | 700 mA | 1.0 | 1.0 | 1.0 | 1.0 |
Comparison using our measurement conditions. The data included is for reference only and the results may vary.
