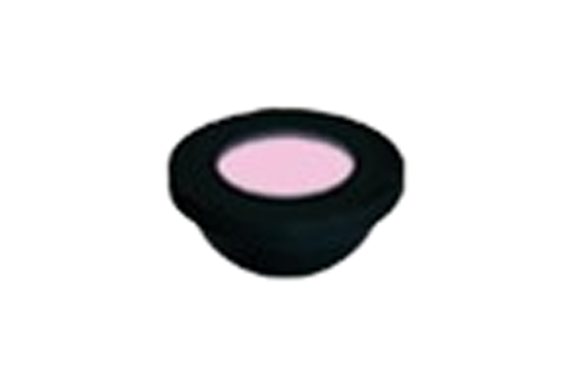

CCS HPD2-100IR860 Dome
Manufacturer: CCS Inc.
Model: HPD2-100IR860
Features
- This Light Unit emits full color (RGB) light and has an outer diameter of 116 mm, an inner diameter of 66 mm, and a height of 57.4 mm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 860 nm typ. |
| Dimensions | Outer diameter 116 mm, Inner diameter 66 mm, Height 57.4 mm |
| Input voltage | 24VDC |
| Power consumption | 23 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 160 g max. |
| Accessories | User Manual |
| Notes | CCS accepts special orders to change the shape of the camera-side opening to 30 mm square. The height of this special ordered Dome Light is 56.7 mm. |

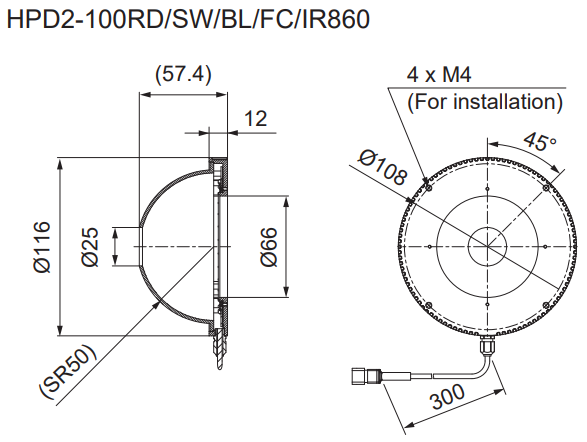

Dimensions (mm)
