CCS Inc.

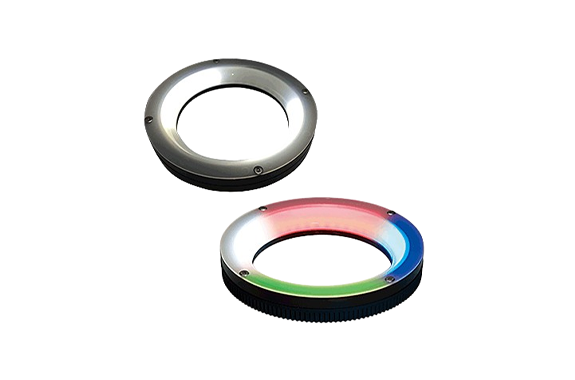

CCS HPR2-400FC-DV4SM8 Segmented Ring Lights
Manufacturer: CCS Inc.
Model: HPR2-400FC-DV4SM8
Features
- HPR2-400XX-DV4SM8.
- Segmented Ring Light Unit.
- Has a very diffused output and comes with four independently controllable quadrants.
- Outer diameter 424 mm, inner diameter 360 mm, and height 19.2 mm.
- Emits RGB (Red, Green and Blue) lights.
Specifications
| LED color | RGB (Red, Green, Blue) |
|---|---|
| Peak wavelength | RED : 622nm typ., GREEN : 525nm typ., BLUE : 470nm typ. |
| Dimensions | Outer diameter 424 mm, Inner diameter 360 mm, Height 19.2 mm |
| Input voltage | 24 VDC |
| Power consumption | 27.7 W max. |
| Polarity & signal | 1: (+), 2: (-), 3: (+), 4: (-), 5: (+), 6: (-), 7: (NC), 8: (NC) |
| Cable length | 300 mm |
| Input connector | SMR-08V-B |
| Conformed standards | CE, RoHS |
| Operating temperature and humidity | Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60℃, Humidity: 20% to 85%RH (with no condensation) |
Dimensions (mm)
