CCS Inc.
CCS HPR2-400FC-FT Ring
Manufacturer: CCS Inc.
Model: HPR2-400FC-FT
Features

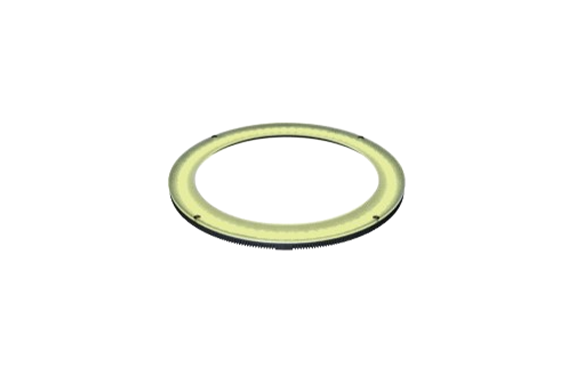

- This Light Unit emits RGB lights and has an outer diameter of 424 mm, an inner diameter of 330 mm, and a height of 19.2 mm.
Specifications
| LED color | RGB (Red, Green, Blue) |
|---|---|
| Peak wavelength | Red: 622 nm typ., Green: 525 nm typ., Blue: 470 nm typ. |
| Dimensions | Outer diameter 424 mm, Inner diameter 330 mm, Height 19.2 mm |
| Input voltage | 24VDC |
| Power consumption | 30 W max. (Red: 7.3 W, Green: 11 W, Blue: 11 W) |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B x 3 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 1,050 g |
| Accessories | User Manual |
| Caution | Cannot be used with the strobe control unit (overdrive mode). |

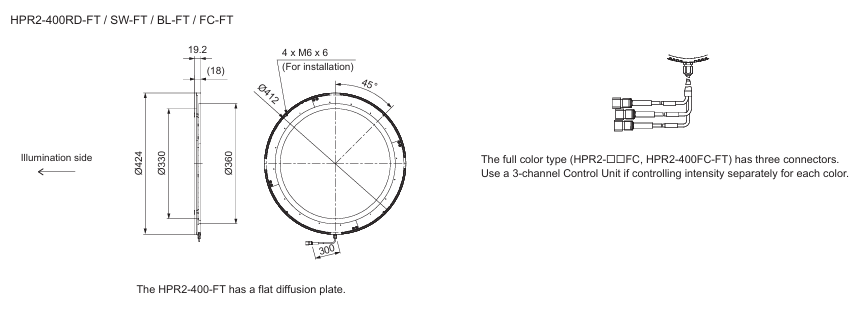

Dimensions (mm)
