CCS Inc.

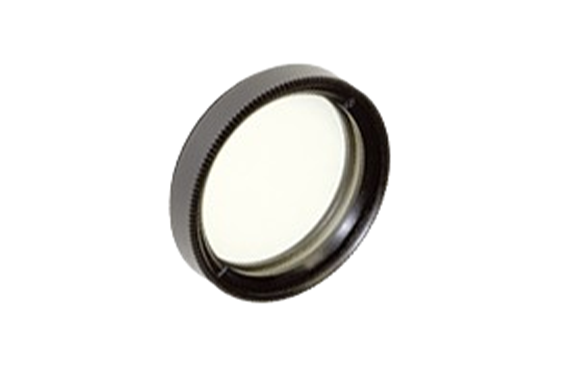

CCS L42-27 Filters
Manufacturer: CCS Inc.
Model: L42-27
Features
- Ultraviolet cutting filter installed in front of a lens.
- Blocks the light of 420 nm or shorter and transmits the longer wavelengths.
- Compatible with a lens filter thread diameter of M27.0 x P0.5.
Specifications
| Dimensions | Outer diameter 28.5 mm, Height 6.5 mm |
|---|---|
| Screw hole diam. x Screw pitch | M27.0 x P0.5 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 7 g max. |
Dimensions (mm)
