CCS Inc.
CCS L42-46 Filters
Manufacturer: CCS Inc.
Model: L42-46
Features

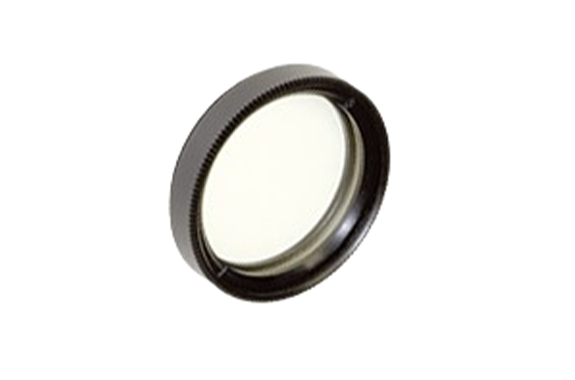

- Ultraviolet cutting filter installed in front of a lens.
- Blocks the light of 420 nm or shorter and transmits the longer wavelengths.
- Compatible with a lens filter thread diameter of M46.0 x P0.75.
Specifications
| Dimensions | Outer diameter 48 mm, Height 7.2 mm |
|---|---|
| Screw hole diam. x Screw pitch | M46.0 x P0.75 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 15 g max. |
Dimensions (mm)
