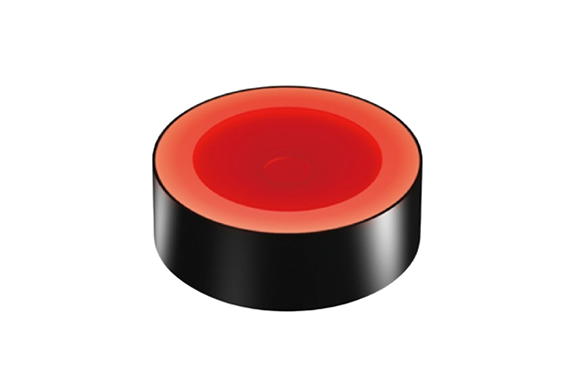

CCS LAV-80RD2 Dome
Manufacturer: CCS Inc.
Model: LAV-80RD2
Features
- Diffused light and coaxial light have been integrated in one unit.
- This Light Unit emits red light and has an outer diameter of 80 mm, an inner diameter of 14 mm, a height of 28 mm, and a light-emitting surface diameter of 56 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | Outer diameter 80 mm, Inner diameter 14 mm, Height 28 mm |
| Input voltage | 24VDC |
| Power consumption | 3.6 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Polyacetal, Acrylic resin |
| Input connector | SMR-03V-B x 2 |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 190 g max. |
| Accessories | Handling Precautions |
Dimensions (mm)
