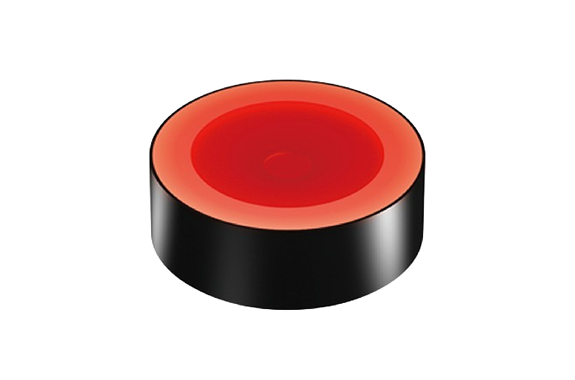

CCS LAV-93RD2-CR25 / LAV-93SW2-CR25 / LAV-93BL2-CR25 / LAV-93GR2-CR25 Dome
Manufacturer: CCS Inc.
Model: LAV-93RD2-CR25 / LAV-93SW2-CR25 / LAV-93BL2-CR25 / LAV-93GR2-CR25
Features
- Diffused light and coaxial light have been integrated in one unit.
- This light unit has an outer diameter of 93mm, an inner diameter of 25mm, a height of 38.5mm, and a light-emitting surface diameter of 66mm.
- Available in 4 LED emission colors: red (LAV-93RD2-CR25), white (LAV-93SW2-CR25), blue (LAV-93BL2-CR25), and green (LAV-93GR2-CR25).
Specifications
| LED color | Red, White, Blue, Green |
|---|---|
| Dimensions | Outer diameter φ93 mm, inner diameter φ25 mm, height 38.5 mm |
| Power consumption | LAV-93RD2-CR25 : 6.7 W max. (Coaxial illumination part : 3.6 W / Diffused illumination part : 3.1 W) LAV-93SW2-CR25 : 6.9 W max. (Coaxial illumination part : 3.1 W / Diffused illumination part : 4.2 W) LAV-93BL2-CR25 : 6.9 W max. (Coaxial illumination part : 3.1 W / Diffused illumination part : 4.2 W) LAV-93GR2-CR25 : contact us If adjusting the intensity for each part separately, use a 2-channel Control Unit. |
| Notes | LAV-93RD2-CR25 : Red LAV-93SW2-CR25 : White LAV-93BL2-CR25 : Blue LAV-93GR2-CR25 : Green |

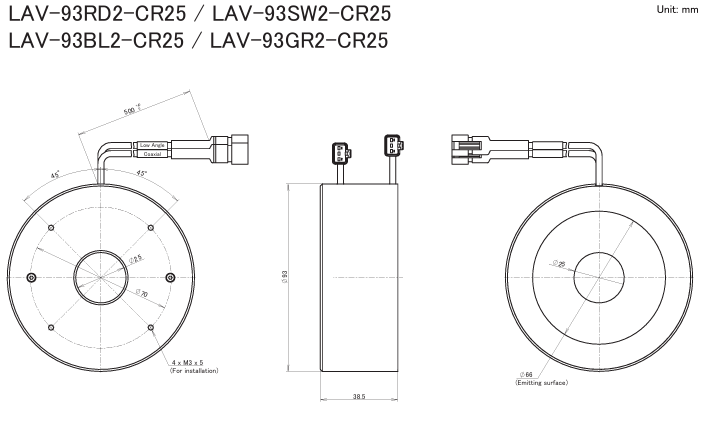

Dimensions (mm)
