CCS Inc.

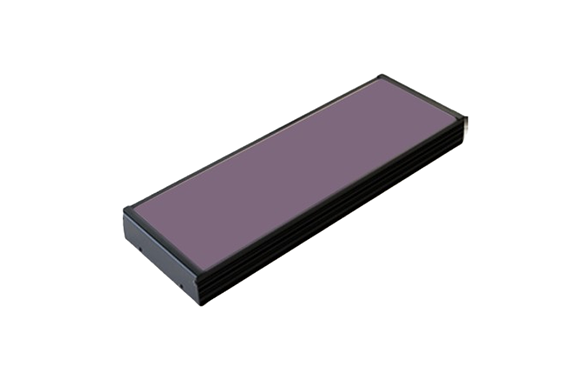

CCS LB-1700X100IR86 Bar (Area)
Manufacturer: CCS Inc.
Model: LB-1700X100IR86
Features
- LB-1700X100IR86 LB Series Diffused Bar Light Infrared Type.
- Measures W 1721.2 mm x D 111 mm x H 33.6 mm, the light-emitting surface measures 1700 x 100 mm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 860 nm |
| Dimensions | W 1721.2 mm x D 111 mm x H 33.6 mm |
| Input voltage | 24 VDC |
| Power consumption | 164 W |
| Polarity & signal | 1, 2, 3: (+)/4, 5, 6: (-)/7: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, steel sheet |
| Input connector | SRCN1A16-7P |
| Conformed standards | CE, UKCA, RoHS IEC 62471 (Exempt) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 4.37 kg |
| Accessories | User Manual |
| Notes | LB-1700X100IR86 is made to order. Please contact your sales representative for details. |
