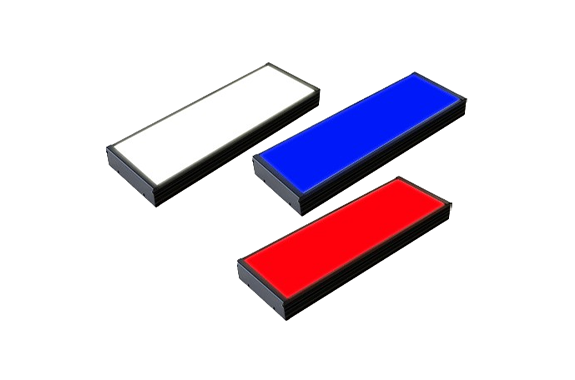

CCS LB-200X100SW / LB-200X100BL / LB-200X100RD Bar (Area)
Manufacturer: CCS Inc.
Model: LB-200X100SW / LB-200X100BL / LB-200X100RD
Features
- LB Series Diffused Bar Lights
- Measures W 221.2 mm x D 111 mm x H 33.6 mm, the light-emitting surface measures 200 x 100 mm.
- Available in 4 wavelengths: white (LB-200X100SW), blue (LB-200X100BL), and red (LB-200X100RD).
Specifications
| LED color | LB-200X100RD: Red LB-200X100SW: White LB-200X100BL: Blue |
|---|---|
| Correlated color temperature | LB-200X100SW: 6300 K typ. |
| Peak wavelength | LB-200X100RD: 630 nm typ. LB-200X100BL: 467 nm typ. |
| Dimensions | W 221.2 mm x D 111 mm x H 33.6 mm |
| Input voltage | 24 VDC |
| Power consumption | 36 W |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, steel sheet |
| Input connector | ELP-02V |
| Conformed standards | CE, UKCA, RoHS IEC 624711 LB-200X100RD : Exempt LB-200X100SW : Exempt LB-200X100BL : Exempt |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 0.77 kg |
| Accessories | User Manual |
| Notes | LB-200X100BL is made to order. Please contact your sales representative for details. |
