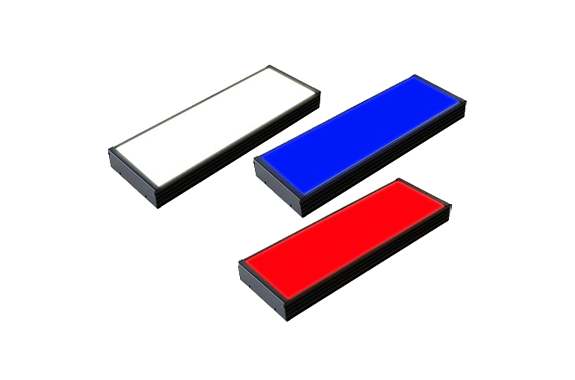

CCS LB-2500X100SW / LB-2500X100BL / LB-2500X100RD Bar (Area)
Manufacturer: CCS Inc.
Model: LB-2500X100SW / LB-2500X100BL / LB-2500X100RD
Features
- LB Series Diffused Bar Lights
- Measures W 2521.2 mm x D 111 mm x H 33.6 mm, the light-emitting surface measures 2500 x 100 mm.
- Available in 4 wavelengths: white (LB-2500X100SW), blue (LB-2500X100B), and red (LB-2500X100RD).
Specifications
| LED color | LB-2500X100RD: Red LB-2500X100SW: White LB-2500X100BL: Blue |
|---|---|
| Correlated color temperature | LB-2500X100SW: 6300 K typ. |
| Peak wavelength | LB-2500X100RD: 630 nm typ. LB-2500X100BL: 467 nm typ. |
| Dimensions | W 2521.2 mm x D 111 mm x H 33.6 mm |
| Input voltage | 24 VDC |
| Power consumption | 447 W |
| Polarity & signal | 1, 2, 3: (+)/4, 5, 6: (-)/7: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy, steel sheet |
| Input connector | SRCN1A16-7P |
| Conformed standards | CE, UKCA, RoHS IEC 624711 LB-2500X100RD : Exempt LB-2500X100SW : Exempt LB-2500X100BL : Exempt |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
| Cooling method | Natural air cooling |
| Weight | 6.29 kg |
| Accessories | User Manual |
| Notes | LB-2500X100SW / LB-2500X100BL / LB-2500X100RD is made to order. Please contact your sales representative for details. |
