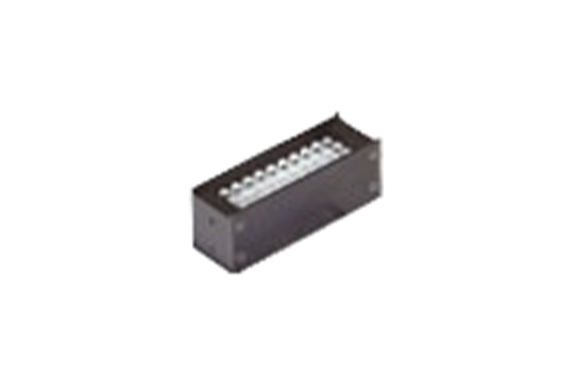

CCS LDL-42X15IR2-940 IR Lights [Infrared Lighting] (under 1000nm)
Manufacturer: CCS Inc.
Model: LDL-42X15IR2-940
Features
- This Light Unit adopts LEDs with a peak wavelength of 940 nm and measures 52 x 17.2 x 20 mm (width x depth x height).
- The light-emitting surface measures 42 x 15.2 mm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 940 nm typ. |
| Dimensions | W 52 mm x D 17.2 mm x H 20 mm |
| Input voltage | 24VDC |
| Power consumption | 2.3 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, POM, Steel sheet |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 40 g max. |
| Accessories | User Manual |
| Caution | * This product uses infrared LEDs. You cannot visually sense the brightness, but infrared radiation comes out of the LEDs when they are on. * The peak wavelength range corresponds to IR-A (780 to 1,400 nm). * Infrared radiation in the IR-A range can damage your eyes. Never look at the infrared radiation directly. * Inform all persons in the area around this product of the dangers of infrared LED. |

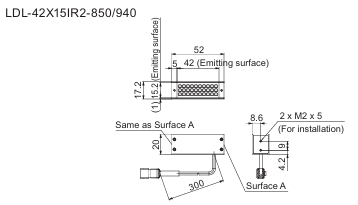

Dimensions (mm)
