CCS Inc.

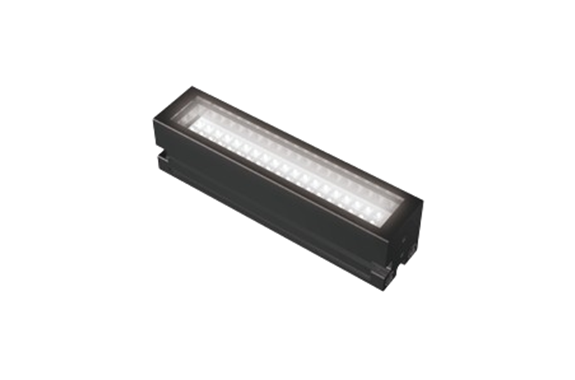

CCS LDL-PF-102X18SW High Power Strobe
Manufacturer: CCS Inc.
Model: LDL-PF-102X18SW
Features
- This Light Unit emits white light and measures 114 x 26 x 30 mm (width x depth x height). The light-emitting section measures 102 x 18 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 7,500 K typ. |
| Dimensions | W 114 x D 26 x H 30 mm |
| Peak current | 10.8 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: (+), 3: (-), 4: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Resin |
| Input connector | ELP-04NV |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 210 g max. |
| Accessories | User Manual |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
Dimensions (mm)
