CCS Inc.

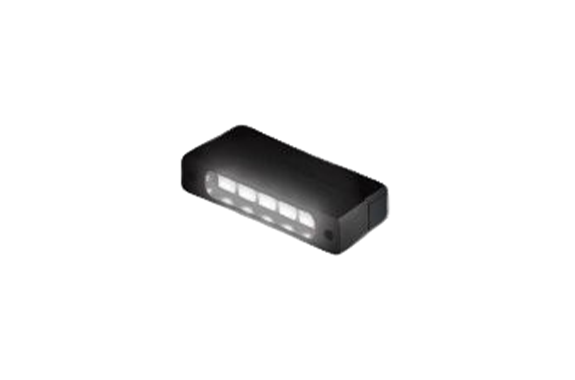

CCS LDL2-19X4SW2(A) Bar (Area)
Manufacturer: CCS Inc.
Model: LDL2-19X4SW2(A)
Features
- This Light Unit emits white light and measures 28 x 6.4 x 13 mm (width x depth x height).
- The light-emitting surface measures 19 x 4 mm.
- The directional characteristics are wide.
- High-power type.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 7,000 K typ. |
| Dimensions | W 28 mm x D 6.4 mm x H 13 mm |
| Input voltage | 24VDC |
| Power consumption | 1.3 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 12 g |
| Accessories | User Manual |

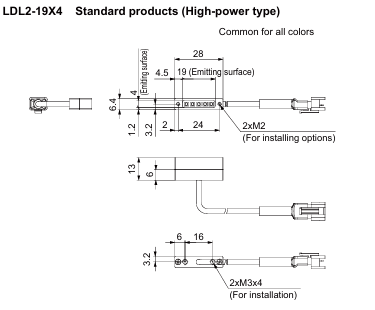

Dimensions (mm)
