CCS Inc.

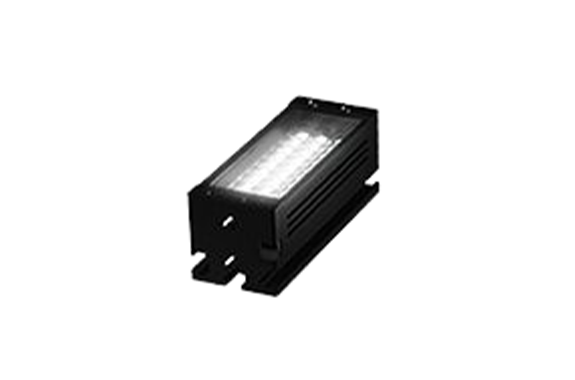

CCS LDL2-41X16SW2-WD(A) Bar (Area)
Manufacturer: CCS Inc.
Model: LDL2-41X16SW2-WD(A)
Features
- This Light Unit emits white light and measures 53 x 20 x 20 mm (width x depth x height).
- The light-emitting surface measures 41 x 16 mm.
- The directional characteristics are wide.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 7,000 K typ. |
| Dimensions | W 53 mm x D 20 mm x H 20 mm |
| Input voltage | 24VDC |
| Power consumption | 3.8 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 50 g max. |
| Accessories | User Manual |
Dimensions (mm)
