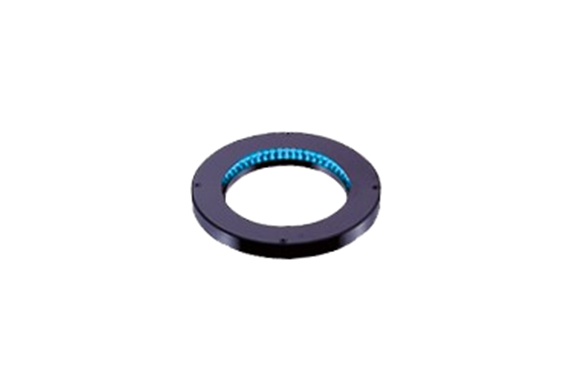

CCS LDR-96BL2-LA1 Low-Angle Ring
Manufacturer: CCS Inc.
Model: LDR-96BL2-LA1
Features
- This Light Unit emits blue light and has an outer diameter of 96 mm, an inner diameter of 60 mm, and a height of 10 mm.
Specifications
| LED color | Blue |
|---|---|
| Peak wavelength | 470 nm typ. |
| Dimensions | Outer diameter 96 mm, Inner diameter 60 mm, Height 10 mm |
| Input voltage | 24VDC |
| Power consumption | 3.8 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 100 g max. |
| Accessories | Handling Precautions |
Dimensions (mm)
