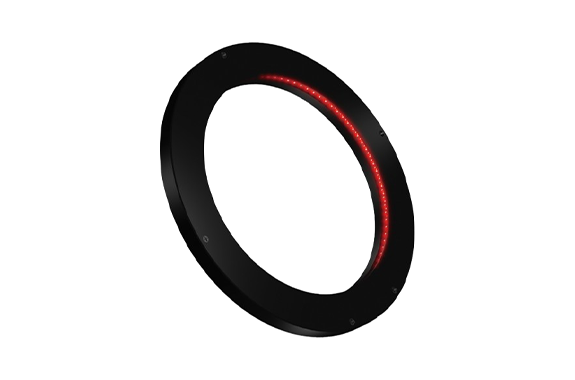

CCS LDR-LA1 Series Low-Angle Ring
Manufacturer: CCS Inc.
Model: LDR-LA1 Series
Features
Illuminating closest to the workpiece
- Allows for illuminating closer to the workpiece than the LDR2-LA series.
- Perfect for imaging of minute unevenness, damage, or engraved characters.
Imaging example for the LDR-206SW2-LA1:Exterior imaging of food containers
LEDs mounted horizontally
Achieved a thin device that is 10 mm thick by mounting LEDs horizontally in one line. Helps save space because it can be installed near the workpiece.
Cross-section image of the LDR-146-LA1
