CCS LDR-PF-100RD-LA High Power Strobe
Manufacturer: CCS Inc.
Model: LDR-PF-100RD-LA
Features

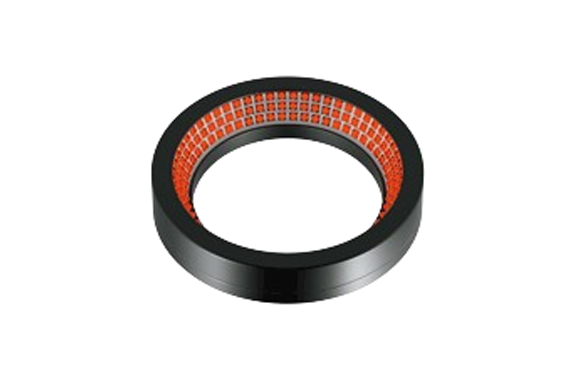

- This Light Unit emits red light and has an outer diameter of 100 mm, an inner diameter of 70 mm, and a height of 19 mm.
- Low-Angle Ring type.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 622 nm typ. |
| Dimensions | Outer diameter 100 mm, Inner diameter 70 mm, Height 19 mm |
| Peak current | 28.8 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: (+), 3: (-), 4: (-), 5: (+), 6: (+), 7: (-), 8: (-), 9: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | ELP-09V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 200 g max. |
| Accessories | User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9) |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
Dimensions (mm)
