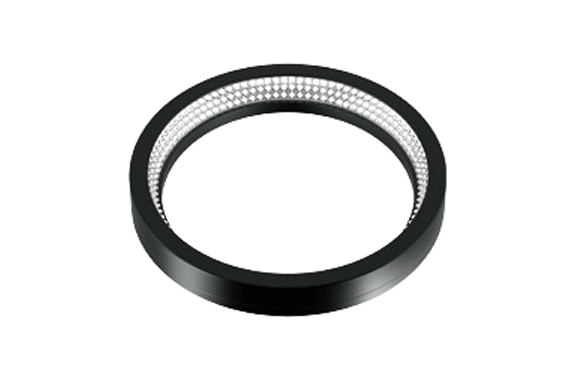

CCS LDR-PF-150SW-LA High Power Strobe
Manufacturer: CCS Inc.
Model: LDR-PF-150SW-LA
Features
- This Light Unit emits white light and has an outer diameter of 150 mm, an inner diameter of 120 mm, and a height of 20 mm.
- Low-Angle Ring type.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 8,000 K typ. |
| Dimensions | Outer diameter 150 mm, Inner diameter 120 mm, Height 20 mm |
| Peak current | 42.0 A |
| Input voltage | 48 VDC max. |
| Polarity & signal | 1: (+), 2: (+), 3: (-), 4: (-), 5: (+), 6: (+), 7: (-), 8: (-), 9: NC |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | ELP-09V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Low risk） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 350 g max. |
| Accessories | User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9) |
| Notes | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |

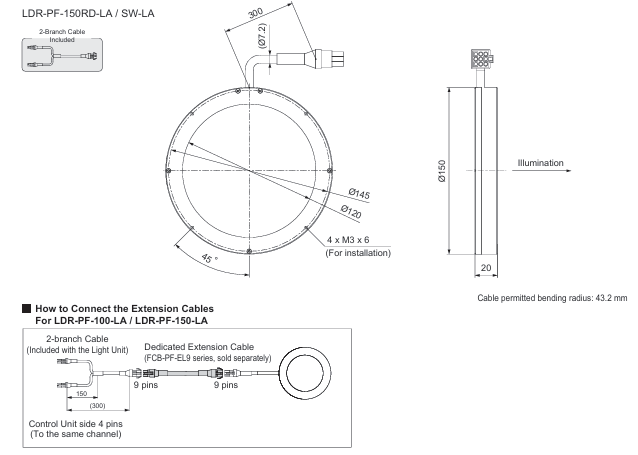

Dimensions (mm)
