CCS Inc.
CCS LDR2-70RD2-HF / LDR2-70SW2-HF / LDR2-70BL2-HF / LDR2-70GR2-HF Ring
Manufacturer: CCS Inc.
Model: LDR2-70RD2-HF / LDR2-70SW2-HF / LDR2-70BL2-HF / LDR2-70GR2-HF
Features

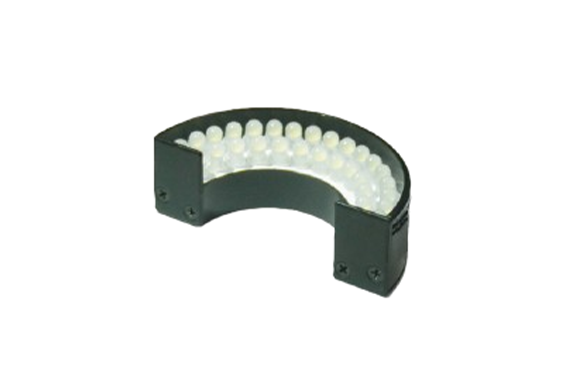

- LDR2-HF Series half ring light with outer diameter 70 mm.
- Available in 4 LED emission colors are red (LDR2-70RD2-HF), white (LDR2-70SW2-HF), blue (LDR2-70BL2-HF), and green (LDR2-70GR2-HF).
Specifications
| LED color | Red, White, Blue, Green |
|---|---|
| Dimensions | See Dimensions tab page |
| Input voltage | 24 VDC |
| Power consumption | Red: Contact us White: 3.5 W max. Blue: 3.5 W max. Green: Contact us |
| Cable length | 0.3 m |
| Conformed standards | RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |

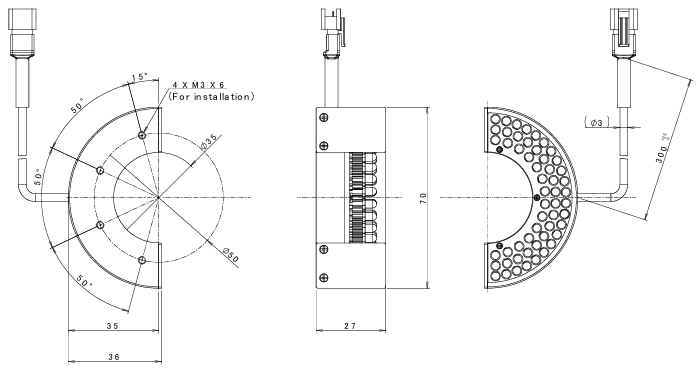

Dimensions (mm)
